RS-1 High Precision Rotational Speed Sensor with Intrinsically Safe Design and Wide Temperature Range

Product Categories

OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OEM

Model Number : RS-1

Place of Origin : China

MOQ : 1

Price : Negotiation

Packaging Details : New original box

Contact Now

RS-1 Rotational Speed Sensor

High precision industrial speed measurement sensor designed for reliable performance in demanding industrial environments.

Technical Specifications

• DC Resistance: Low resistance type: 180–250Ω; High resistance type: 450–550Ω

• Speed measuring gear type: Module 2–4 (involute gear)

• Operating temperature: -30℃ to 100℃, humidity ≤95% (non-condensing)

• Measuring distance: 0.5–1mm

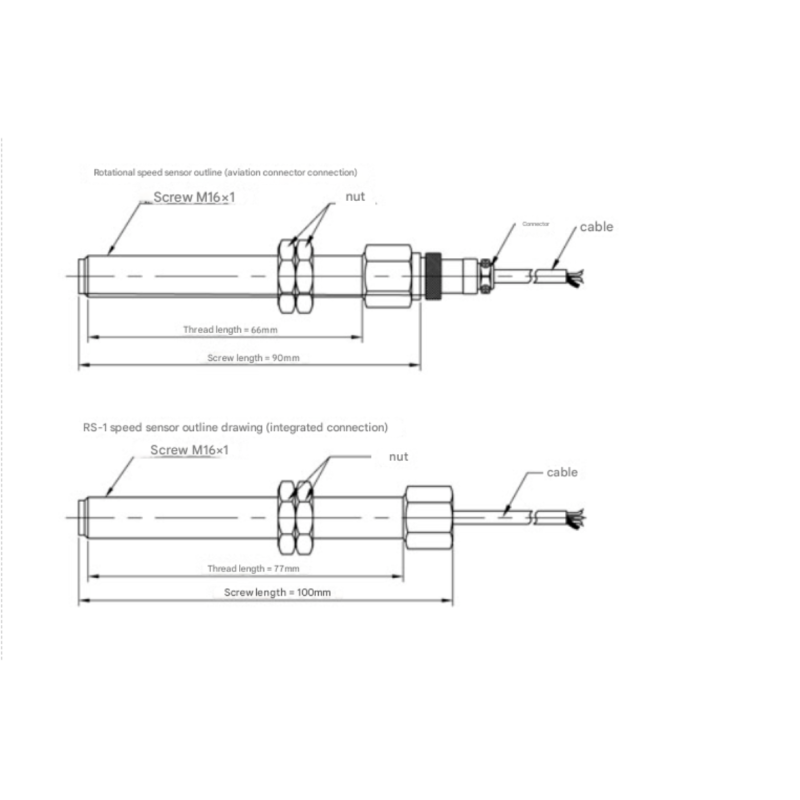

• Thread specification: M16mm*1mm

• Explosion-proof rating: ExiaIIBT5 (intrinsically safe)

Gear Requirements

• Gear Material: Metal with strong magnetic permeability

• Gear Profile: Involute tooth profile recommended for optimal performance

• Large module gears or alternative tooth profiles may cause waveform distortion affecting measurement accuracy

• For spindles with axial movement, ensure magnetic pole center aligns with gear center

Product Images

Product Tags:

High Precision Rotational Speed Sensor
